ADT-D series diffusers are excellent choice for applications requiring
equal throw in all directions. The tight horizontal 360° discharge pattern
for superior induction and occupant comfort. The ADT-D models are
fitted with a quick-release cone inner assembly for immediate access
to the damper and ease of installation.
The ADT-D series diffusers are offered with ADT-D9001 (1-way),
ADT-D9002 (2-way), ADT-D9003 (3-way) and ADT-D9004 (4-way) air patterns in a multitude of arrangements. The ADT-D diffusers provide exceptional horizontal ceiling patterns effective for cooling applications
or can be installed in a high-sidewall application utilizing the ADT-D9003
(3-way) or ADT-D9001 (1- way) pattern.
• Frame and Core: High quality extruded aluminum profile with 30 mm flange width.
• Frame Thickness: 2 mm
• The Frame & Core are made of high quality extruded Aluminum Profile with advantages of corrosion resistance and rigidity.
• Removable cores provide easy access to the mounting margin and neck damper.
• Flat Margin Style.
• Easily removable cores with no tools required.
• Opposed blade dampers (OBD).
• Square to round adapter.
• Natural aluminum anodized finish.
• Standard finish is white powder coated.
• Other finish is available as option.
| 150 x 150 | 375 x 375 |
| 225 x 225 | 450 x 450 |
| 300 x 300 | 600 x 600 |
| • Non-standard size available as option | • All sizes can be produced |
.png)

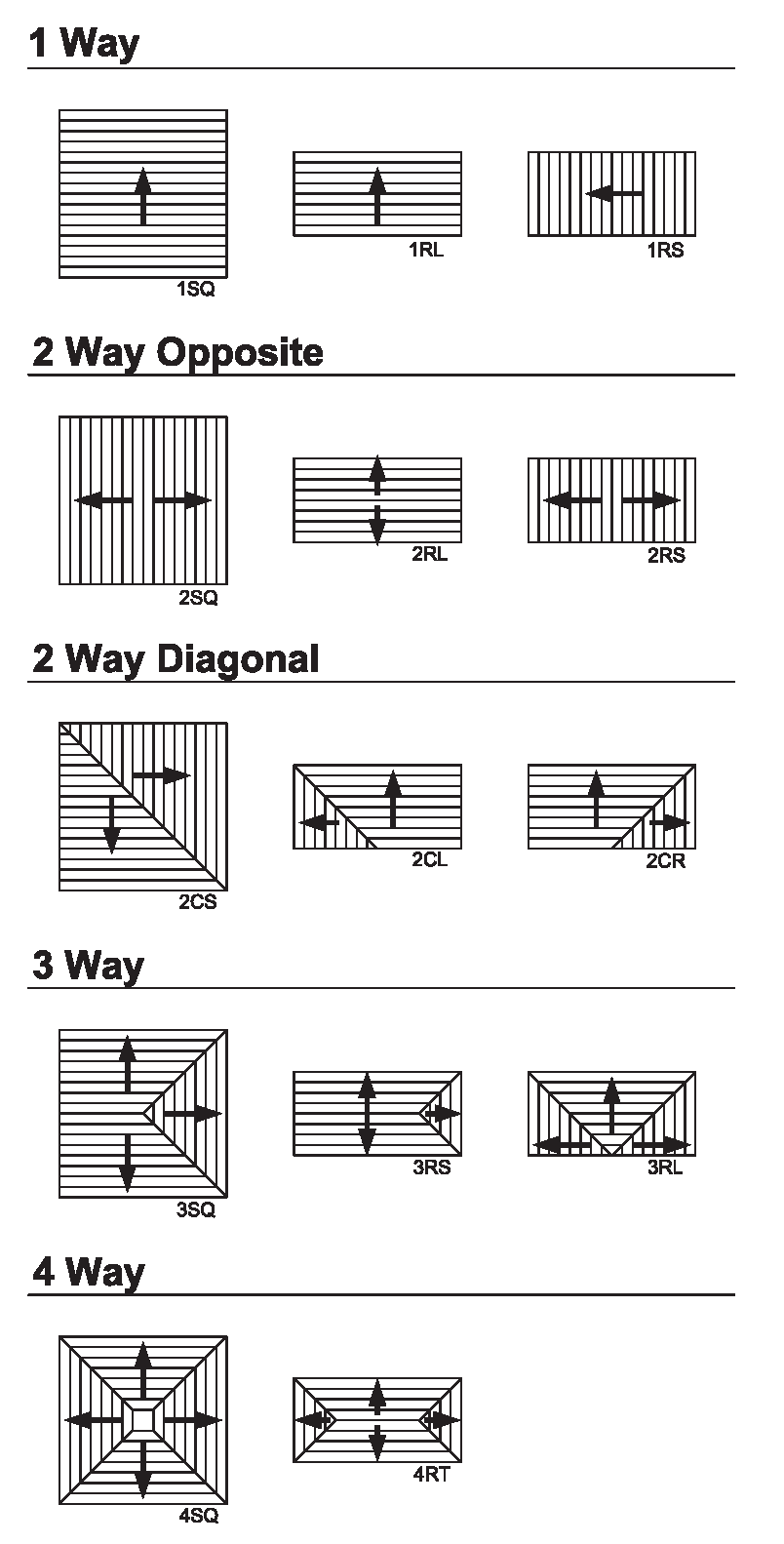

| Code | Deflection Pattern |
|---|---|
| 1SQ | 1-way Square |
| 1RL | 1-way Rectangular Long |
| 1RS | 1-way Rectangular Short |
| 2SQ | 2-way Square |
| 2RL | 2-way Rectangular Long |
| 2RS | 2-way Rectangular Short |
| 2CS | 2-way Corner Square |
| 2CR | 2-way Corner Right |
| 2CL | 2-way Corner Left |
| 3SQ | 3-way Square |
| 3RL | 3-way Rectangular Long |
| 3RS | 3-way Rectangular Short |
| 4SQ | 4-way Square |
| 4RT | 4-way Rectangular |

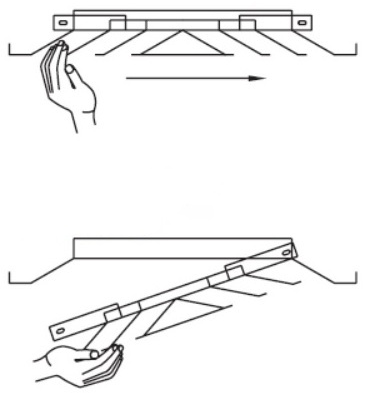

• Push core sideways against spring.
• Hold core securely and allow core to drop down.

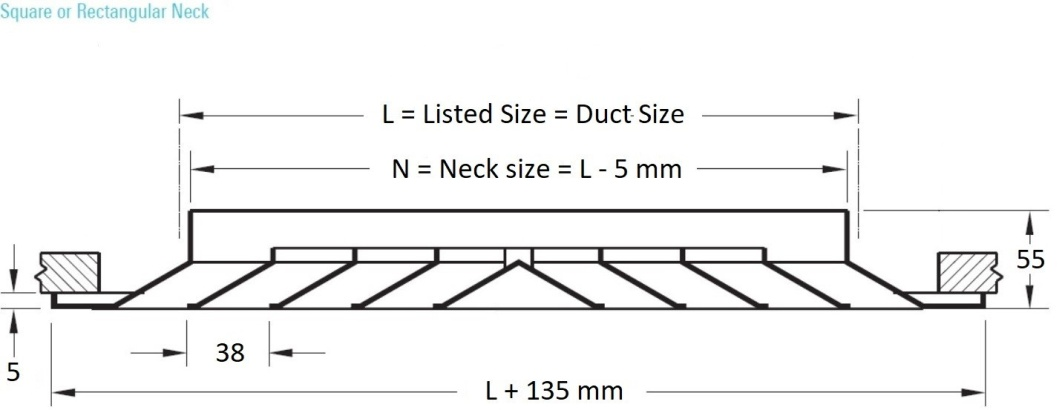

• All Dimensions are in mm.
